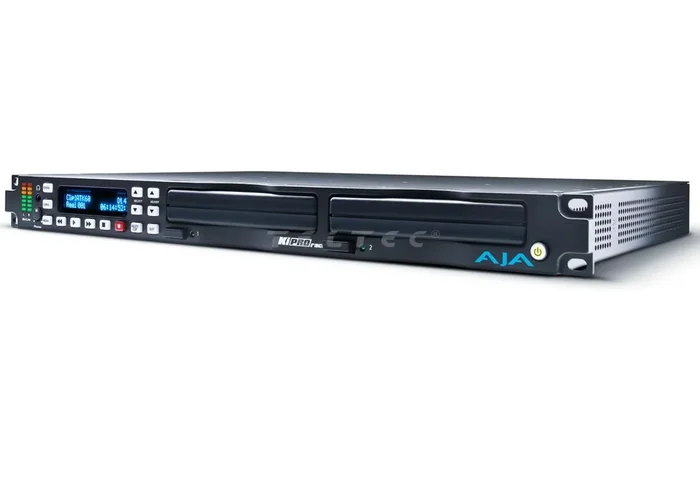

AJA Ki Pro Rack

• 1080i 25, 29.97, 30
• 1080PsF 23.98, 24, 25*, 29.97*
• 1080p 23.98, 24, 25, 29.97
• 720p 23.98*, 25*, 29.97*, 50, 59.94, 60
• 625i 25
• 525i 29.97

• Apple ProRes 422
• Apple ProRes 422 (HQ)
• Apple ProRes 422 (LT)
• Apple ProRes 422 (Proxy)
• Avid DNxHD 220x
• Avid DNxHD 145
• Avid DNxHD 36, only provides support for the 1080p format

• SD/HD SDI, SMPTE-259/292/296, 10-bit
• Single Link 4:2:2 (2 x BNC, input selection in software)
• HDMI v1.3

• SD/HD Component (3 x BNC)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J
• 12-bit A/D, 2 x oversampling
• +/- .25 dB to 5.5 mHz Y frequency response
• +/- .25 dB to 2.5 mHz C frequency response
• .5% 2T pulse response
• <2 ns Y/C delay inequity, or Composite (1 x BNC – CVBS on Y)

• SD/HD SDI, SMPTE-259/292/296, 10-bit
• Single link 4:2:2 (1 x BNC)
• HDMI v1.3

Note: HDMI requires 1080i, 720p or 1080p to be active; HDMI does not provide support for PsF

• Component (3 x BNC)
• NTSC, NTSCJ, PAL
• HD: YPbPr, RGB
• SD: YPbPr, RGB (component mode)
• SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
• 12-bit D/A, 8 x oversampling
• +/- .2 dB to 5.5 mHz Y frequency response
• +/- .2 dB to 2.5 mHz C frequency response
• .5% 2T pulse response
• <1 ns Y/C delay inequity, or Composite (1 x BNC – CVBS on Y)
• +/- .2 dB to 5.0 mHz Y frequency response
• +/- .2 dB to 1 mHz C frequency response
• <1% Diff Phase
• <1% Diff Gain

• 8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
• 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)

• 2-Channel, 24-bit A/D analog audio, 48 kHz sample rate, balanced (2 x XLR)
• +24dbu full scale digital
• +/- 0.2db 20 to 20 kHz frequency response (Note: Line or Mic selection via CONFIG menu parameters)

• 8-Channel, 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, 24-bit AES/EBU audio, synchronous or nonsynchronous, internal sample rate conversion (4 x BNC)

• 2-Channel, 24-bit D/A analog audio, 48 kHz sample rate, balanced (2 x XLR)
• +24dbu full scale digital (0dbFS)
• +/- 0.2db 20 to 20 kHz frequency response
• Stereo unbalanced headphone (1 x 3.5mm mini jack)

• Hardware 10-bit
• Anamorphic: fullscreen
• Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars
• Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
• Zoom Letterbox: results in image zoomed to fill fullscreen
• Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

• Hardware 10-bit
• Anamorphic: fullscreen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit new screen size

• Hardware 10-bit
• 1080i to 720p
• 720p to 1080i

• SDI RP188/SMPTE 12M via SDI BNC
• HDMI (when used with compatible cameras)
• LTC Input (1 x BNC)
• LTC output (1x BNC) (Note: active during playback not during record or EE)

• Analog Color Black (1V) or Composite Sync (2 or 4V)
• Looping, nonterminating

• 10/100/1000 Ethernet (RJ-45)
• Embedded web server for remote control

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
